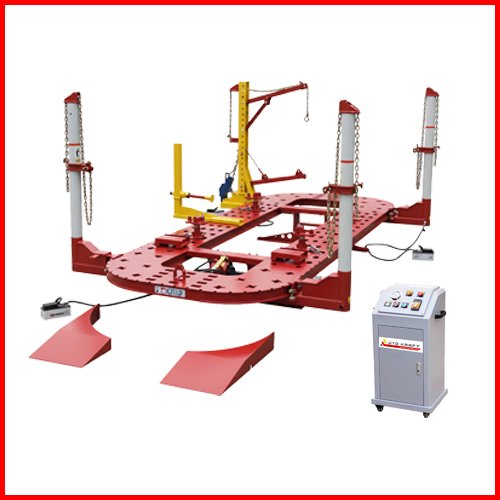

Autokraft is proud to introduce the new industry standard: the AK555. As the UAE's first 5-pole chassis alignment system, the AK555 takes collision repair to an unprecedented level of control and precision.

Developed with a new generation of German engineering, the AK555's innovative 5-pole configuration delivers unmatched pulling power and a wider range of motion, enabling a full 360° plus multi-directional access. This allows technicians to tackle the most severe and complex structural damage with greater efficiency and accuracy.

Autokraft's commitment to pioneering technology is demonstrated once again with the AK555. With this system, we are not just setting a new benchmark for collision repair; we are defining the future of the industry. Rugged, powerful, and ready for any challenge—the AK555 is the ultimate tool for elite body shops.

Specification:

Material: Manganese steel, 10mm steel plate

Dimensions (L×W×H): 5600mm × 2250mm × 550mm

Platform Thickness: 120mm

Single Side Platform Width: 600mm

Lifting System: Hydraulic single tilting system

Required Air Pressure: 0.8 Mpa

Hydraulic System Pressure: 70 Mpa (10000 psi)

Max Pulling Capacity: 100 KN (10 tons)

Max Lifting Capacity: 3500 kg

Towers: Two circular, one square, and one small tower

Attachments: One lean arm, four main clamps, two ramps, one tool cart

Tools: 25 pieces

Pumps: Three air pumps

Packaging Volume and Weight: 8.7, 3550 kg

Package Dimentions1: 5600mm × 2250mm × 370mm

Package Dimentions2: 2250mm × 1450mm × 570mm

Package Dimentions3: 2250mm × 1700mm × 570mm
